Redis communications

Concept

A Redis communication is a command / reply exchange between a Redis client and a Redis server, decoded from the RESP protocol (RESP2 and RESP3).

It is a sequence of related TCP packets in a TCP session between a client and a server.

Each Redis communication is associated with:

• Source and destination IP address
• Source and destination TCP port
• The connection information (user, database, RESP protocol version…) extracted from AUTH / SELECT / HELLO / CLIENT SETNAME
• The command issued, its key and arguments
• The kind of exchange:
  • simple — a single command and its reply
  • pipelined — commands sent back-to-back before their replies, each paired to its own reply
  • push — a pub/sub delivery (message / pmessage / smessage), with no client request
  • multi / multi-aborted — a command queued inside a MULTI / EXEC transaction (or a discarded / aborted one)
• The reply, with its RESP reply type, status, error and values
• The value(s) carried by the command and the reply, optionally transcoded to JSON via a schema

Redis communications are extracted while parsing the TCP sessions in streaming, on the Spider backend.

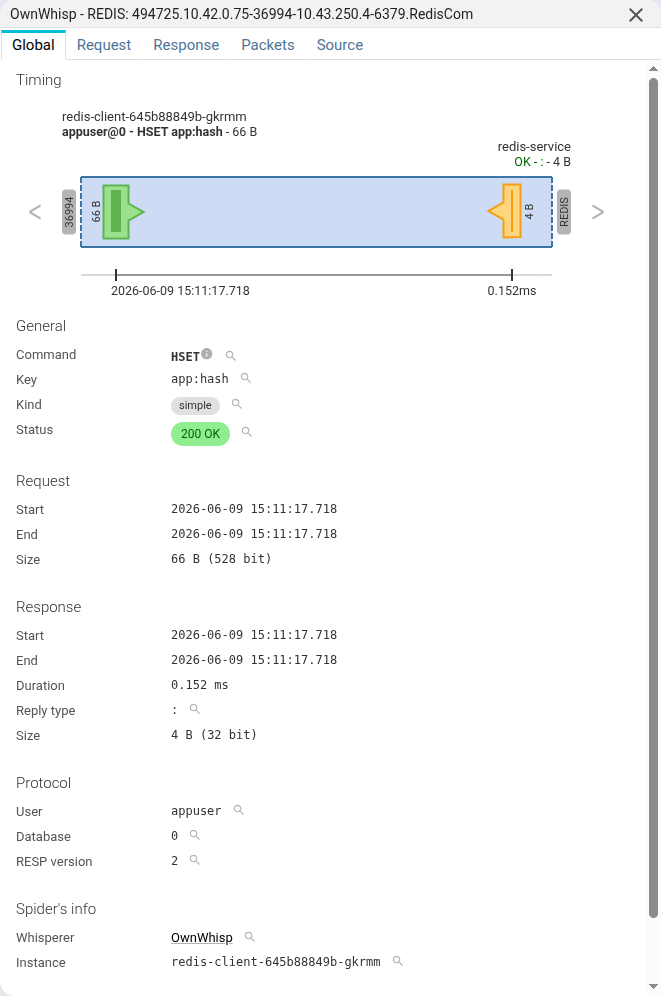

Global Tab

Timing

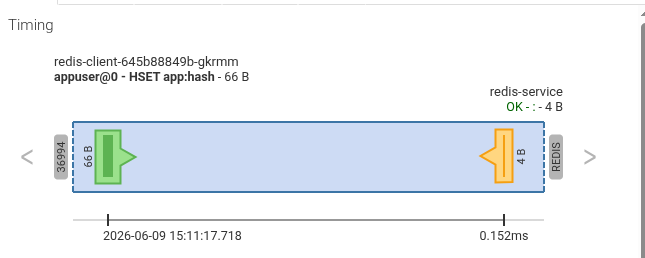

The timing diagram shows much information at a glance:

It shows the client and server hosts, the request (green) and response (orange) shapes scaled by the packet timestamps with per-packet markers, the identity line (user@db - command key - size), and the response summary (status + reply type + size). The Redis server port (6379 by default) is labelled REDIS.

• The client and server hosts are shown, by order of preference:
  • The short name of the Host, as extracted during integration in the backend, or as renamed by a user
  • The FQDN of the Host
  • The IP address, if no Host found

General

The General section shows identification information:

Field	Description
Command	The Redis command issued (e.g. GET, SET, HSET, SUBSCRIBE)
Key	The key the command operates on, when it has one
Kind	simple, pipelined, push, multi or multi-aborted
Status	A computed status, made to match HTTP semantics

Spider maps RESP replies onto HTTP-like status codes so Redis communications are comparable with HTTP and PostgreSQL ones (e.g. 200 OK, 400 for a -ERR, 401 / 403 for NOAUTH / WRONGPASS / no-permission errors, 404 when a key is missing, 409 for an aborted transaction).

Request

The Request section shows summary information of the request part:

Field	Description
Start	Date the request started, user's local time
End	Date the request ended
Size	Total bytes sent to the server

Response

The Response section shows summary information of the response part:

Field	Description
Start	Date the response started
End	Date the response ended
Duration	The difference between request start and response end
Reply type	The RESP reply type (+ simple string, $ bulk string, : integer, * array, - error, _ null, …)
Size	Total bytes received from the server

Protocol

The Protocol section shows the connection identity, extracted from the AUTH, SELECT, HELLO and CLIENT SETNAME commands seen in the session and carried over to every communication in that session:

Field	Description
User	The user used to connect to Redis (default if none)
Database	Redis logical database the client SELECTed (0 by default)
RESP version	Redis wire protocol version (2 or 3)

The request Template (a stable name for recurrent commands, e.g. GET user:*) and any extracted Tags are configured at Whisperer level and are searchable. See Templates.

Tags

Tags are a very powerful feature of Spider parsing process.

They are configured at Whisperer level, and allow custom extraction of the data exchanged. They allow searching and aggregating by the extracted values.

Spider parses Redis commands and replies during processing, then links commands and replies together. Tags may be set — using regular expressions — to extract any value found in the command, its key, its arguments, or in the reply (its value, reply type or error).

tip

Tags may be enriched / decoded by a plugin. For instance:

• To translate internal identifiers from keys into their business names
• With a link to open them in the application under observation

Transaction

When the communication is part of a MULTI / EXEC transaction, a Transaction line links all the commands of the same transaction together through a shared transactionId, so you can follow a whole transaction at once — including its outcome (committed, DISCARDed, or aborted on EXECABORT / a dirty WATCH).

Spider info

This section shows Spider own information:

Field	Description
Whisperer	Name and link to the Whisperer
Instance	Instance of the Whisperer that captured the communication
Tcp session	Tcp session id and link
Request parsing	Parsing status of the request
Response parsing	Parsing status of the response

Actions

When packets are saved and available, you may download a .pcap file with this communication only.

Request tab

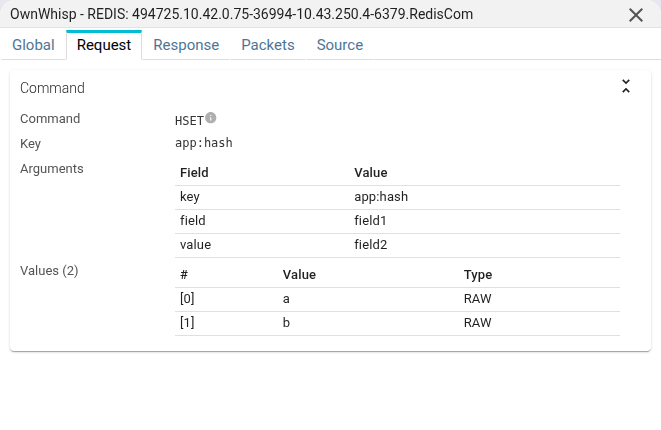

The Request tab shows the command sent by the client to the server: the command name, its key and its arguments.

When the command carries one or more values (e.g. SET, MSET, HSET), they are shown in an indexed value table — one row per value. A toggle switches between the raw bytes and the transcoded JSON form when a schema binding matches.

Response tab

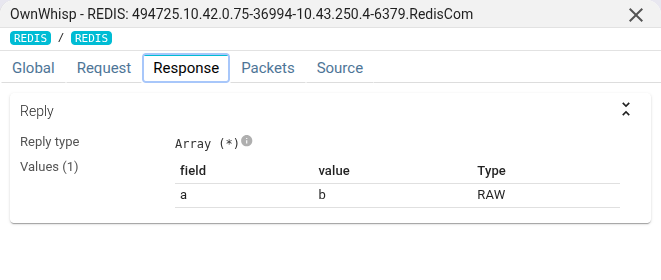

The Response tab shows the reply sent by the server, with its RESP reply type.

Multi-value replies (MGET, HGETALL, LRANGE, SMEMBERS…) are shown in the same indexed value table — one row per returned value — with the same raw ↔ transcoded toggle. Large value sets are paged.

Transcoded view

When a content schema is bound to a (database, key glob) pair, Spider transcodes the matching command and reply values from their binary form (Protobuf / MessagePack) to searchable JSON. The value table then defaults to the Transcoded view, and falls back to Raw with a banner when the binding misses or decoding fails. Tags and templates can extract from the JSON form of transcoded values.

Packets tab

The Packets tab shows the network packets composing the Redis communication. You may open them by clicking on the rows.

Field	Description
Dir	Direction of the packet
Time	Time the packet was captured
Payload	Size of the TCP payload
Info	Flags and beginning of TCP payload, in ASCII

::: note When the communication is over TLS, the packets are encrypted. The only ways to see them decrypted is to access the TCP session, and:

• to read the packets from the beginning, in the content tab,
• or to export the session in .pcapng format (for Wireshark or alike) :::

Source

The Source tab shows the Redis communication in JSON format. Below is a sample Redis communication as it is available through the API:

{
    "@id": "oWl09MaiTVOz6Kuk7H9eOg.redis-84c8f95fd6-v8pgr.494744.10.42.0.67-38186-10.42.0.53-6379.554123633.RedisCom.6",
    "@type": "RedisCom",
    "dateModified": "2026-06-10T08:51:35.289+00:00",
    "tcpSession": "oWl09MaiTVOz6Kuk7H9eOg.redis-84c8f95fd6-v8pgr.494744.10.42.0.67-38186-10.42.0.53-6379.554123633",
    "instanceId": "redis-84c8f95fd6-v8pgr",
    "name": "494744.10.42.0.67-38186-10.42.0.53-6379.RedisCom",
    "whisperer": "oWl09MaiTVOz6Kuk7H9eOg",
    "kind": "simple",
    "req": {
        "command": "GET",
        "key": "app:counter",
        "template": "-",
        "args": [
            "GET",
            "app:counter"
        ],
        "argCount": 2,
        "size": 31,
        "packets": [
            "oWl09MaiTVOz6Kuk7H9eOg.redis-84c8f95fd6-v8pgr.494744.10.42.0.67-38186-10.42.0.53-6379.554123633-13"
        ],
        "start": 1781081483.696741,
        "startDate": "2026-06-10T08:51:23.696Z",
        "end": 1781081483.696741,
        "endDate": "2026-06-10T08:51:23.696Z",
        "startMinute": "2026-06-10T08:51:00Z",
        "status": "COMPLETE"
    },
    "res": {
        "replyType": "$",
        "size": 8,
        "packets": [
            "oWl09MaiTVOz6Kuk7H9eOg.redis-84c8f95fd6-v8pgr.494744.10.42.0.67-38186-10.42.0.53-6379.554123633-14"
        ],
        "start": 1781081483.696792,
        "startDate": "2026-06-10T08:51:23.696Z",
        "end": 1781081483.696792,
        "endDate": "2026-06-10T08:51:23.696Z",
        "status": "COMPLETE"
    },
    "stats": {
        "statusCode": 200,
        "statusText": "OK",
        "duration": 0.00005078315734863281,
        "respVersion": 2,
        "dst": {
            "ip": "10.42.0.53",
            "name": "redis-84c8f95fd6-v8pgr",
            "port": 6379,
            "socket": "10.42.0.53:6379"
        },
        "src": {
            "ip": "10.42.0.67",
            "name": "redis-client-645b88849b-gkrmm.test-redis-notls.pod.cluster.local.",
            "port": 38186,
            "socket": "10.42.0.67:38186"
        },
        "timespan": {
            "gte": "2026-06-10T08:51:23.696Z",
            "lte": "2026-06-10T08:51:23.696Z"
        },
        "tags": {
            "values": {},
            "count": {},
            "cardinality": {}
        }
    },
    "connectionMetadata": {
        "user": "appuser",
        "db": "0"
    },
    "redisParsing": "oWl09MaiTVOz6Kuk7H9eOg.redis-84c8f95fd6-v8pgr.494744.10.42.0.67-38186-10.42.0.53-6379.554123633.RedisParsingLog"
}

Most fields are self-explanatory. Most fields are indexed and searchable.

Some extra explanation:

Field	Description
connectionMetadata	Data extracted at connection time, and copied to all communications inside the session
kind	simple, pipelined, push, multi or multi-aborted
req.template	Computed command name (see Templates) — "-" when none matches
res.replyType	The RESP reply type byte (+ $ : * - _ # , ( ~ % > …)
stats	Stats object regroup most important information
stats.timespan	Indexed as range, to allow range searching and aggregations
stats.src|dst.name	Hostname resolved on the Whisperer
stats.tags.*	Extracted tags values, count and cardinality
req\res.status	Parsing status
transactionId	Present on multi / multi-aborted coms — groups a MULTI / EXEC transaction

note

The full request and response values are stored separately (in a dedicated content store) and fetched on demand from the Request / Response tabs, so the communication document itself stays small and fast to search.
